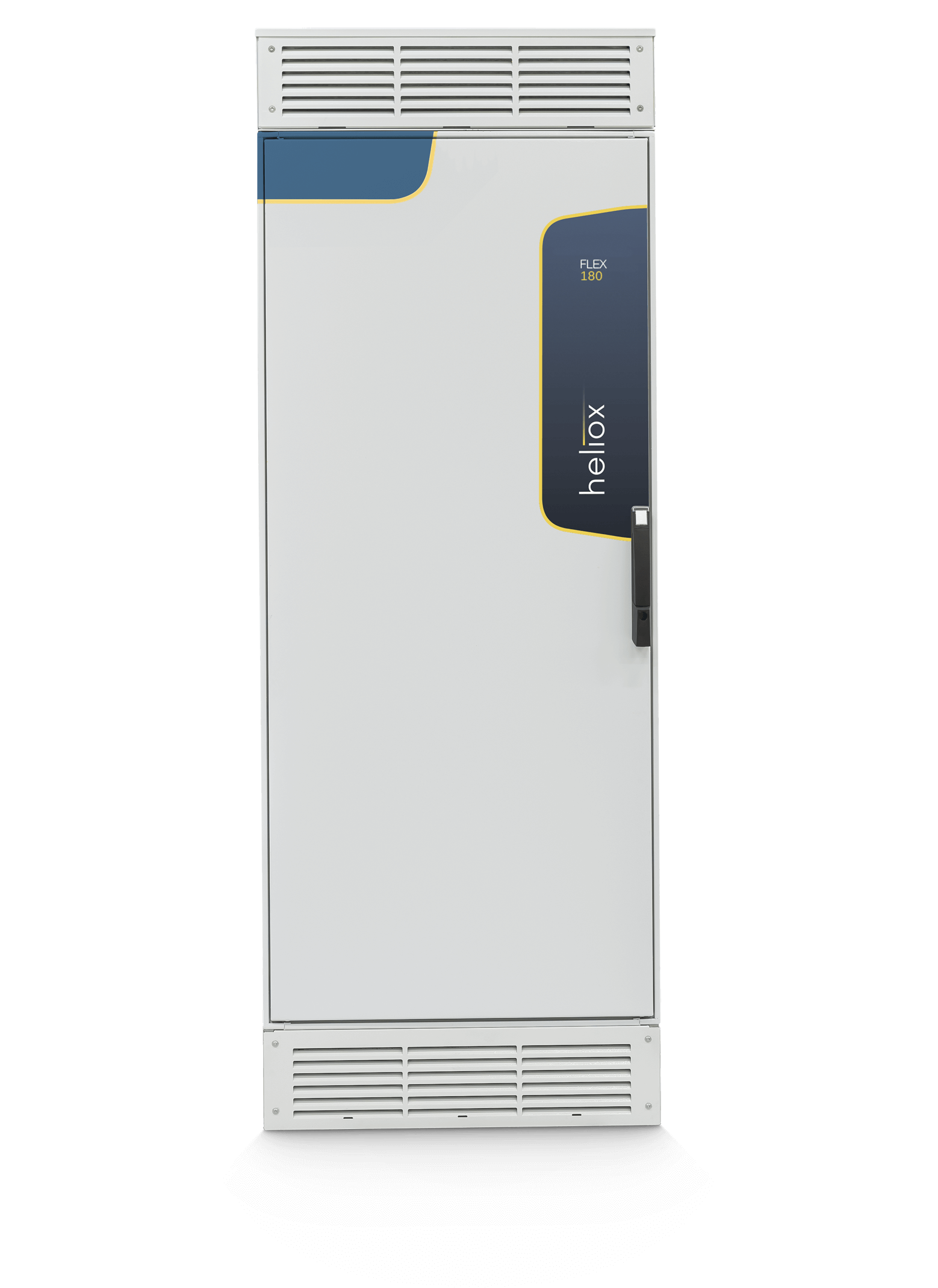

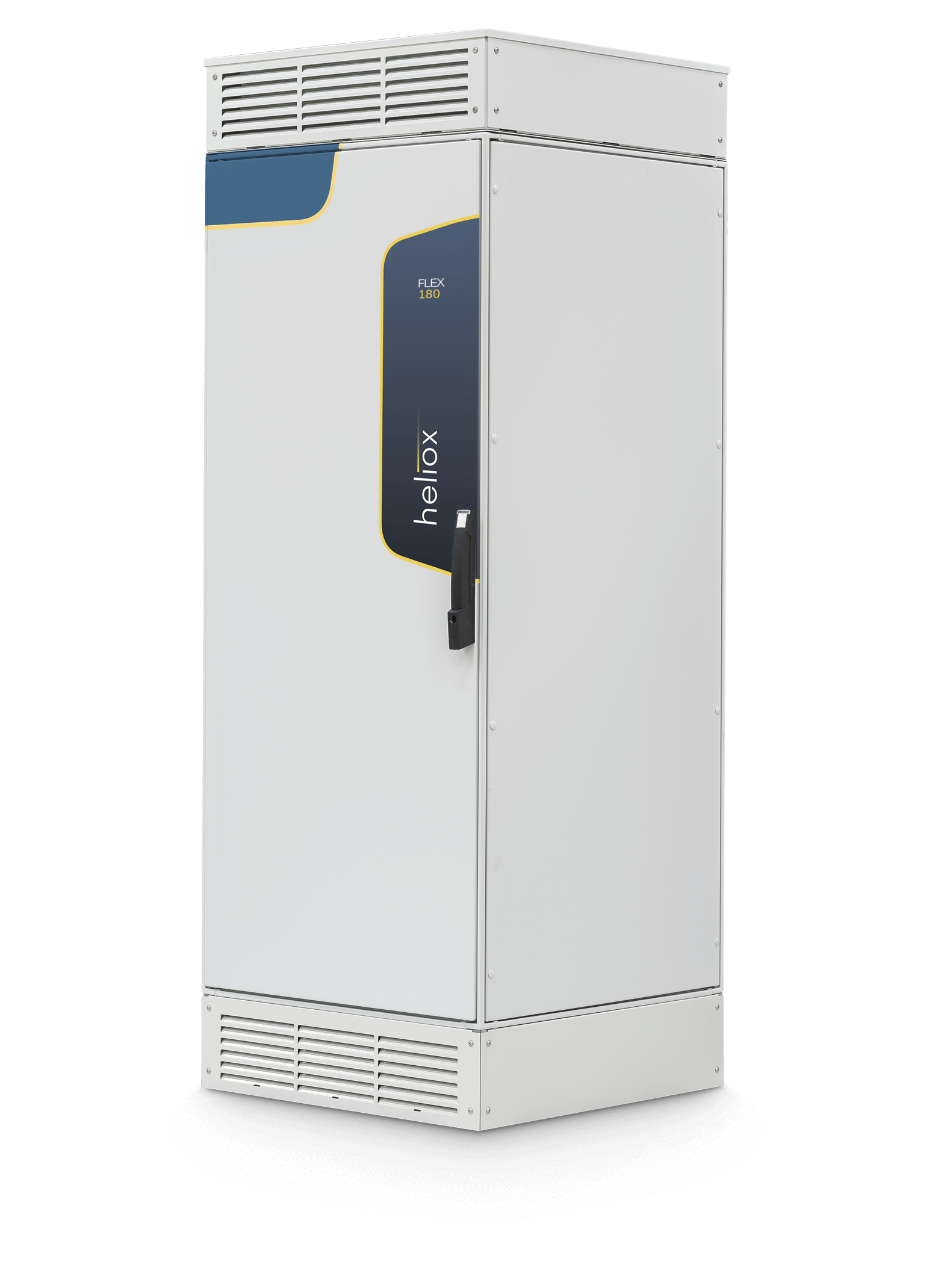

Flex 180 kW

Versatil. Adaptive. Fast power.

Request Pricing

The Flex 180 is Heliox's most versatile charging solution. Whether you need overnight or opportunity charging, dynamic or static charging, to charge 1 vehicle or up to 3, the Flex 180 can do it all. It's the most flexible charging solution available, anywhere.

Click here to see the accessory sheet.

Power:
180
kW
No items found.
No items found.
Order Now
Interested in ordering this charger?
Simply fill out your details and we'll get in touch.
Ideal for:
E-Bus
E-Truck
Charging Estimator
50
min
Charging time
100 miles
Distance
Vehicle Type: E-Bus
70
min
Charging time
100 km
Distance
Vehicle Type: E-Truck
14
min
Charging time
100 km
Distance
Vehicle Type: E-Car
Design for reference only. Design and product specifications are subject to change without notice.​
Figures shown are calculated based on average kWh charging speeds and average battery size across e-bus, e-truck and passenger vehicles. Real world km’s charged within 1 hour will vary depending on different factors including temperature, battery health etc.
Charging Estimator
50
mn
Charging time
100 km
Distance
Vehicle Type: E-Bus
70
mn
Charging time
100 km
Distance
Vehicle Type: E-Truck
14
min
Charging time
100 km
Distance
Vehicle Type: E-Car
Design for reference only. Design and product specifications are subject to change without notice.​
Figures shown are calculated based on average kWh charging speeds and average battery size across e-bus, e-truck and passenger vehicles. Real world km’s charged within 1 hour will vary depending on different factors including temperature, battery health etc.
Request Pricing
Interested in ordering this charger?
Simply fill out your details and we'll get in touch.
Adaptative design

It can adapt and expand as needed, offering options for hardwired or portable setups, networked or standalone operation, and the ability to deploy a single charger or multiple units, providing you with full control over your charging solution.

Plug and play experience

Charging starts automatically after plug in. With 30 A (25 kW), 60 A (50 kW), and Max (60 kW) power options, the Heliox 60 kW charger offers flexibility to match your charging needs and AC wall-socket connection.

Reliability on-the-go

Experience fast DC charging wherever you need it. In workshops, depots or testing environment; this charger provides charging capabilities anywhere, anytime. It is an ideal solution to start your electrification journey

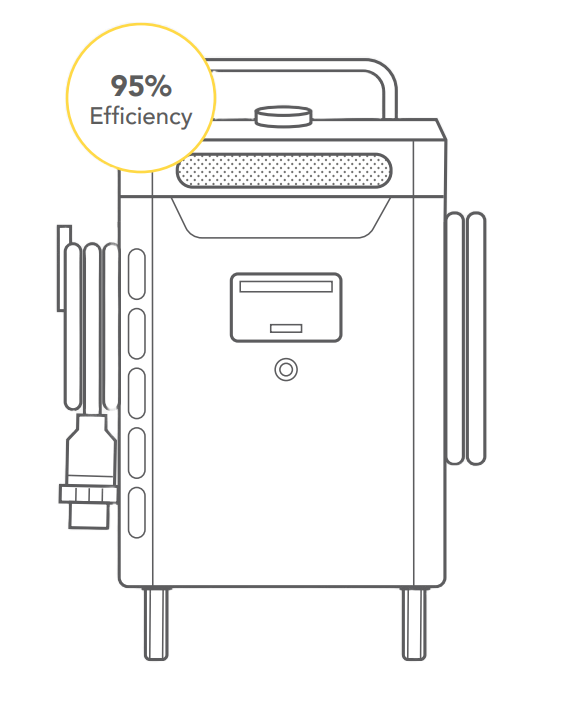

The Heliox 60 kW is the perfect EV charging companion, now and in the future.

Versatile in
charging power options

The Heliox 60 kW stands up to daily wear and tear in ways other portable chargers simply cannot.

With a NEMA 3R-rated enclosure, the charger can be safely operated indoors and outdoors.

Raise or lower your charger AC input situations where your power supply may be limited.

The Heliox 60 kW is the perfect EV charging companion, now and in the future.

Options for hardwired or portable setups, networked or standalone operation.

A complete charging solution

Service & Maintenance

Our service offering is designed to ensure your charging systems are maintained, monitored, and attended to keep them running continuously and provide the highest uptime.

Learn more
Charger management

Empower your fleet with a real-time monitoring platform that helps you charge your fleet more efficiently and lower your operational costs.

Learn more
Energy Management

Your electric fleet can play an important role in your energy management system and create an additional revenue stream, without impacting your daily operations.​

Learn more

Technical specifications

Looking for support?
Visit our Support Center
Go to Support Centre
Environment operating
Indoor/Outdoor
Temperature
-22 to 113°F (derating may apply)
Charging standard
SAE J1772 / SAE J3105-1
Compliance and safety
UL 2202 / UL 2231
Output DC voltage range
150 - 1000 V
Rated DC output power
Single output: 180 kW; Triple outputs: 60 kW each (in parallel); Dynamic output: 180 / 120 / 60 kW (1-3 active sessions)
Rated DC output current
Single output: 250 A; Triple outputs: 83 A each; Dynamic output: 83 / 167 / 250 A
Input connections
3P + G
Input power rating (full load / idle)
205 kVA / 100 VA
Input AC line-line voltage range
480 V AC +6/-13 %, 60 Hz
Input AC phase current (maximum)
283 A, no inrush
Power factor
> 0.98
Power conversion efficiency
96.2%
Dielectric withstand
3000 V
Network cellular
4G modem
Protection
NEMA 3R
Operational noise level
<60 dB(A) @ 40"
System weight
1323 lbs.

Versatile

Flexible EV charging the way you want it. Mix and match up to three DC charging columns, dispenser reels, or pantographs per station, enabling you to make the most out of your available energy.

Smart

With the Flex Charge System, you can configure each station to distribute your energy in the method that best suits you:

Sequential: One active session @ 180 kW, rotating when full
Parallel: Up to three active sessions @ 60 kW each
Dynamic: 1-3 active sessions @ 180 / 120 / 60 kW
